Connecting to Luxriot

  1. Open UgCS for DJI settings and select “Live Stream Provider”
2280

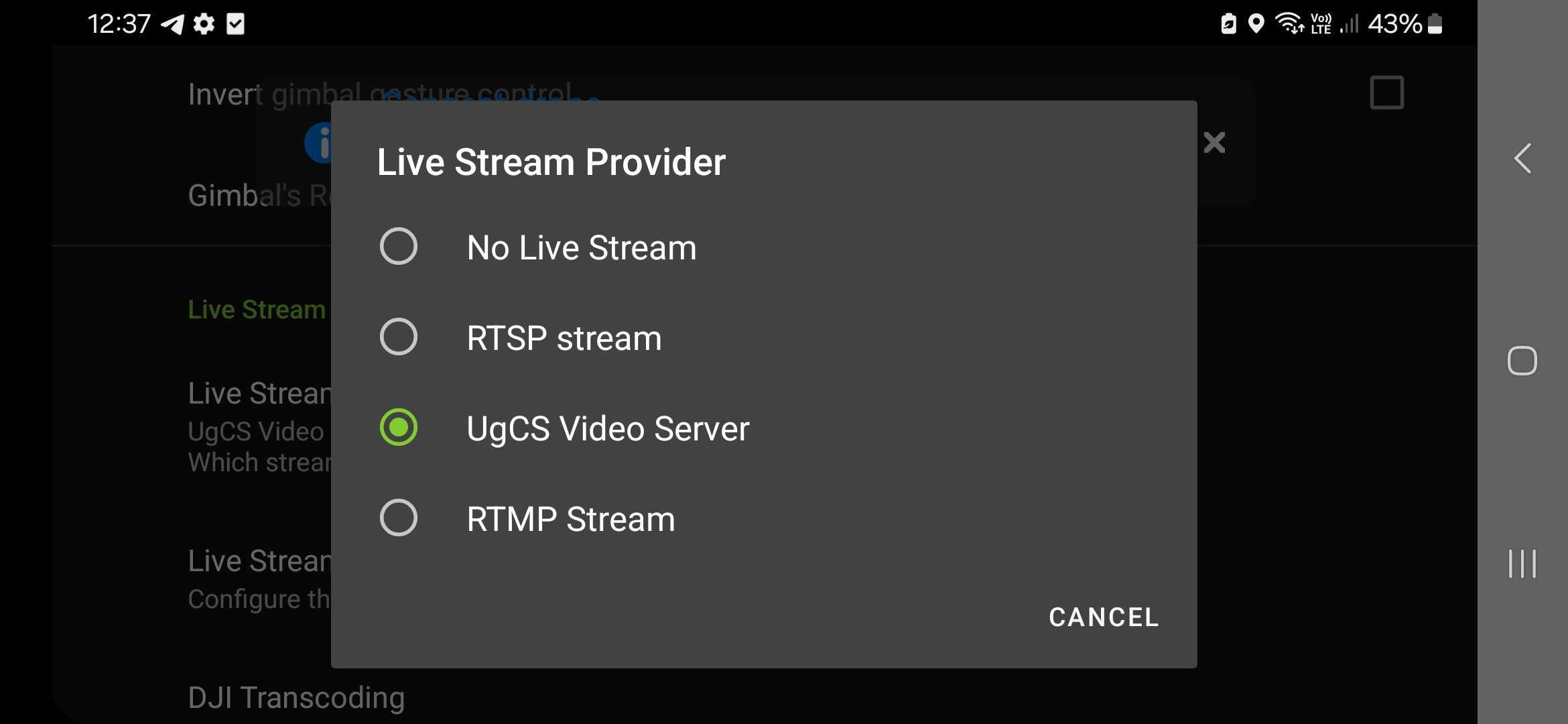

  1. Select “UgCS VideoServer"
2280
  1. Select “Live Stream Provider Preferences” and put the checkbox under “Use Videserver SSDP” And “Use custom server address”
2280
  1. Under “Target host” – enter UgCS VideoServer IP
2280
  1. Open UgCS VideoPlayer and select the UAV from the drop-down window.
664
  1. Select the drone in the preview pane
453
  1. Copy & past RTSP link from UgCS VideoPlayer to Notepad for ease of use
550 475
  1. Open Luxriot EVO management console and click Devices – New Device.
550
  1. Type in a friendly name for the drone and select model
550 550
  1. Select RTSP compatible model and click OK
550
  1. At this step, a Network and Channels tab should become available. Switch to Network and enter the IP Address and the port number from the notepad.
550
  1. Switch to Channels and click Apply and OK
550
  1. Go to Channels tab and click Edit
550
  1. Go to Channel configurations, then select “Open channel properties”
550
  1. In the new window, select the RTSP tab,
    • Remove the “Use default port” checkbox
    • Copy the port number from the notepad
    • Remove the “RTP over TCP” checkbox
    • Copy the transcoded stream name from the notepad
    • Click Apply and OK
392
  1. Click OK, at the Channel configuration tab and click “Show video”
550 550
