Route export to the DJI Pilot 2

UgCS allows exporting routes as WPML files (in *.KMZ format), which can then be imported directly into DJI Pilot 2.

To do so:

1. Create a route in UgCS Desktop;

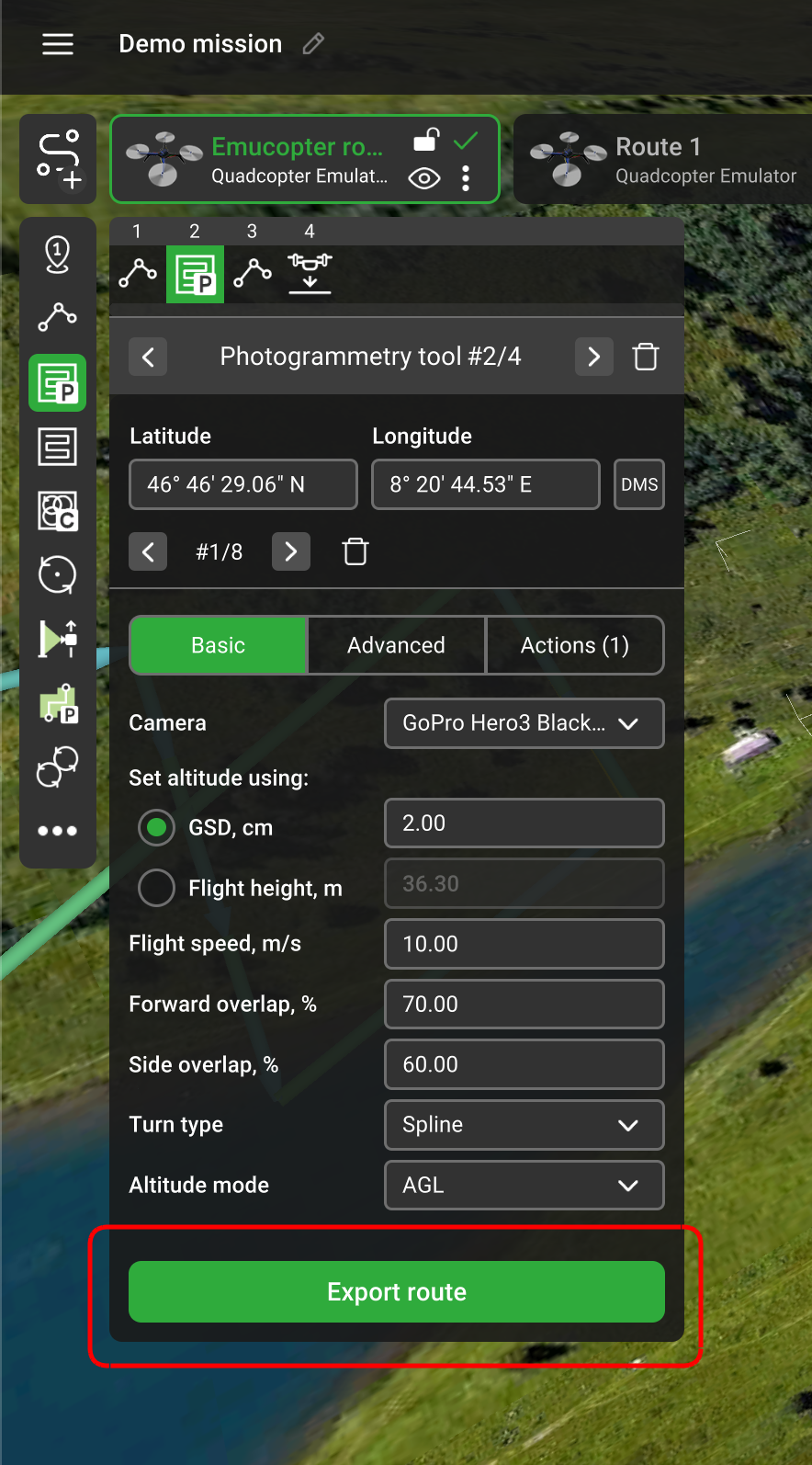

2. Open the route menu and select the "Export" option;

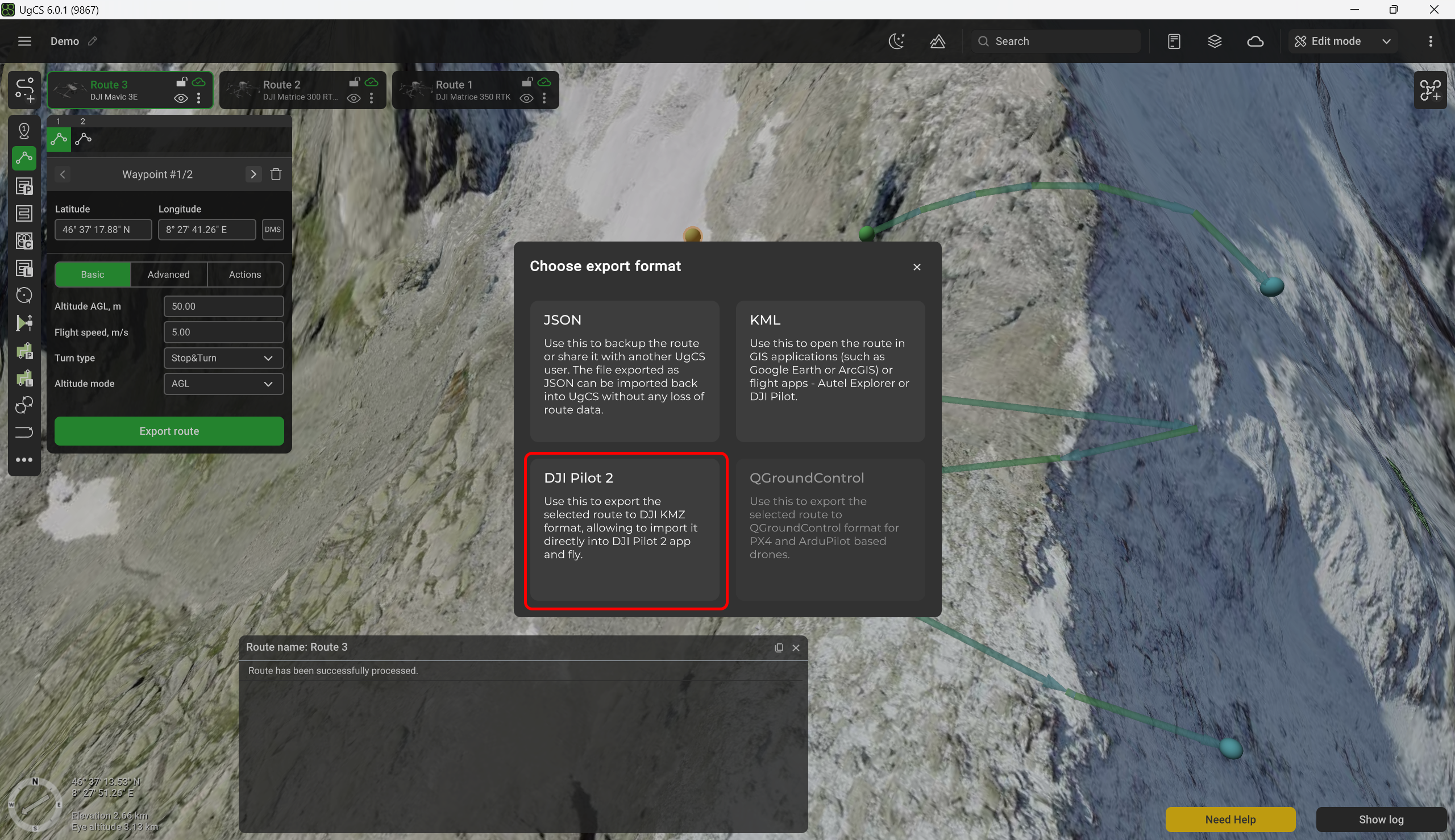

3. Choose the "DJI Pilot 2" option in the pop-up window;



4. Select the Altitude mode depending on your workflow;



5. Indicate the file destination folder;



6. Transfer the file to the RC. It may be done either by connecting the RC to the computer using the USB cable or by using the SD card;

7. Launch the DJI Pilot 2 application on the RC;

8. Select the "Flight Route" option from the home screen;

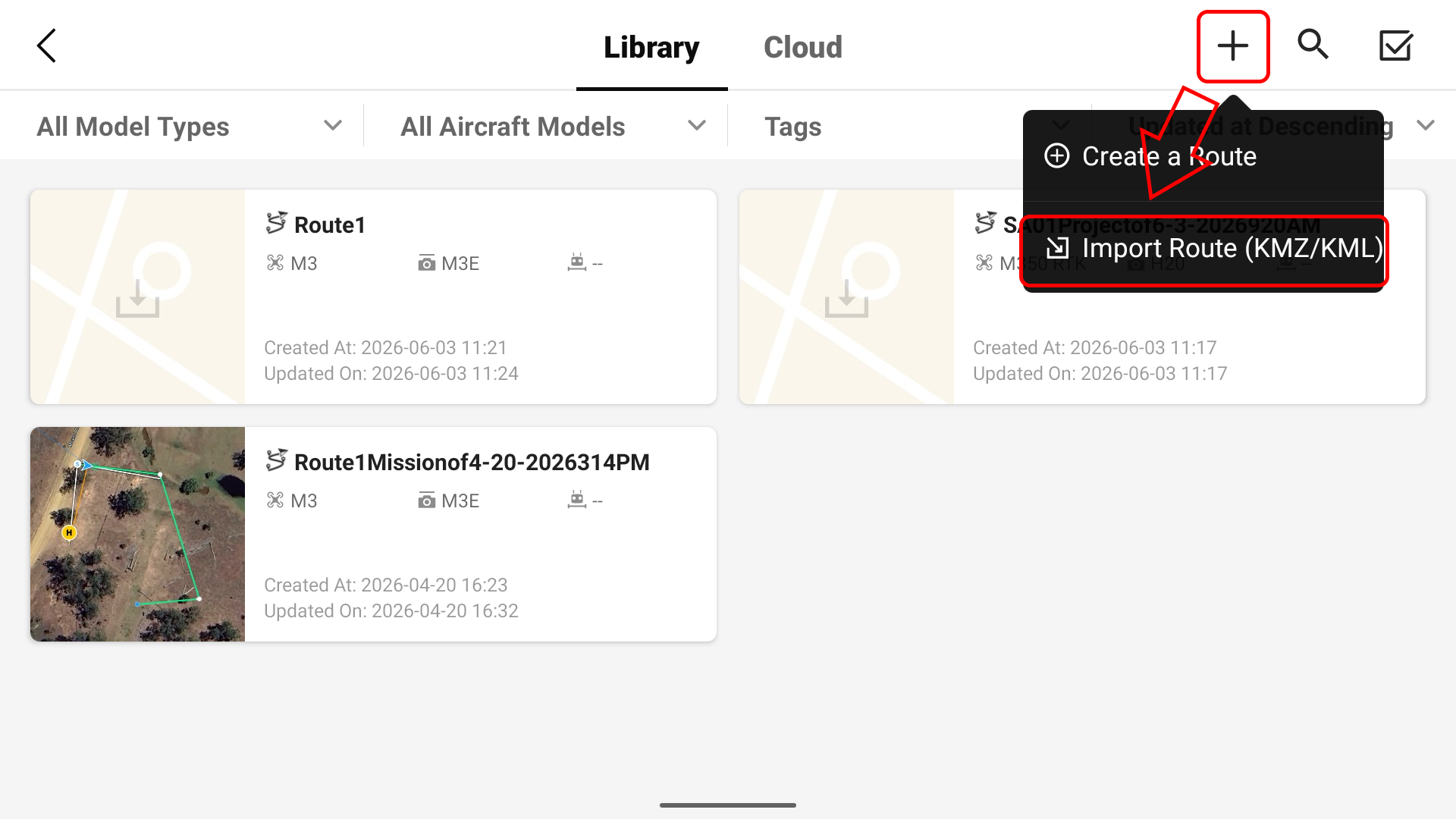

9. Select the "Import Route (KMZ/KMZ)" option;



10. Navigate to the directory with the required route and select it. Click the confirm button;



11. Your route is now saved to the DJI Pilot 2 library.

This video demonstrates the entire process:
