Lidar area

The UgCS toolset for LIDAR mission planning is enabled for the UgCS EXPERT and ENTERPRISE licenses. To use the LIDAR toolset, create a new route for DJI M210/M200, M600, M300, M350, M400, or PX4/Ardu autopilots.

To get accurate LIDAR scan results, a pilot needs to follow the rules below:
• Initialise IMU properly
IMU initialisation is typically performed at least two times per flight. Before scanning begins and after scanning ends. The DJI L-series LiDAR sensors require additional IMU calibration mid-flight. UgCS LiDAR tools include this option. The pilot may also pause the flight and perform additional IMU initialisation to reset accumulated errors. This function is implemented as a drone command for some DJI models, so the pilot may run it at any time. For this command to run, the drone should already be in the air and connected to the UgCS Desktop via one of the UgCS mobile applications.
• Maintain correct flight height and line spacing between scans to ensure coverage and point density.
• Ensure the right drone turns and line scanning to minimise IMU error accumulation and excessive shaking of the LIDAR above the area of interest.

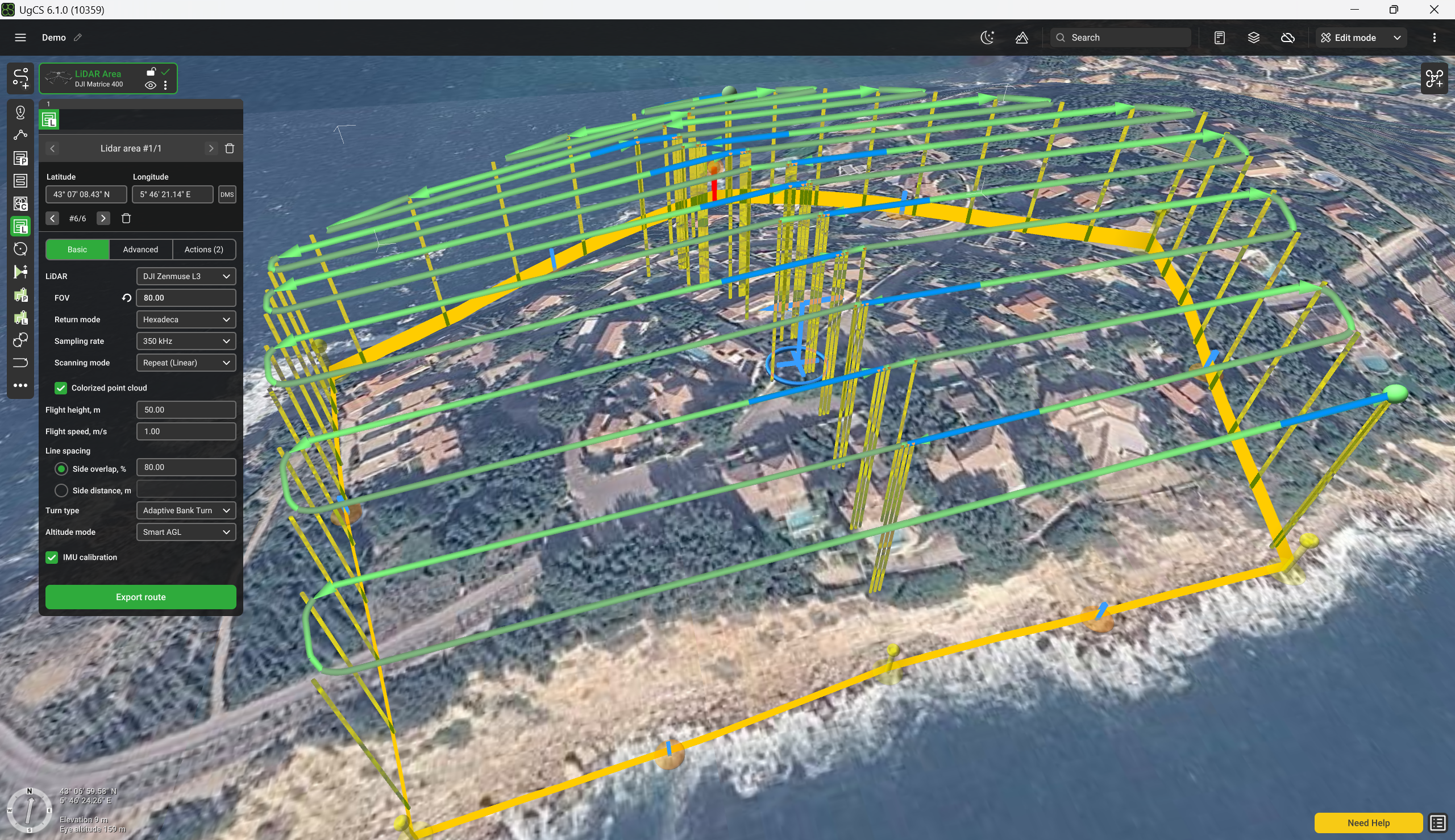

Lidar Area scan is similar to the Area Scan tool. The following parameters are available for the Lidar Area scan tool:

Basic

LiDAR - allows selecting the LiDAR profile and creating a new profile without the need to visit the main menu. If the payload profile is created using this option, it appears in the payload menu as a generic entry with one parameter only: Field of view.

• FOV, deg - field of view in degrees. It is the visible extent of the scene captured by the image sensor, stated as an angle. The default value is stored in the payload profile; however, it can be adjusted manually. The circular arrow near the input field resets the value to default.
• (DJI L-series sensors) - Return mode. Corresponds to the DJI native settings.
• (DJI L-series sensors) - Sampling rate. Corresponds to the DJI native settings.
• (DJI L-series sensors) - Scanning mode. Corresponds to the DJI native settings.
• (DJI L-series sensors) - Colorized point cloud. Corresponds to the DJI native settings.

Flight height - altitude of flight over the area.

Flight speed - speed of flight over the area.

Line spacing - there are 2 options. A pilot can specify:

• Side overlap in per cent.
• Side distance.
  In the case of a percentage, the software will calculate line spacing based on FOV and flight height.

Turn type - allows setting the turn type.

Altitude mode - Allows setting the altitude mode.

IMU Calibration - enables IMU calibration for a segment. More details here - LiDAR Calibration

Advanced

Forward overlap - the ratio of the overlap in neighbouring frames. Value is set in the range from 1% to 90%.

Corner radius - radius of adaptive turn.

Loop turn angle - the maximum value below which software will add loops for turns. For values greater than “Loop turn angle,” standard bank turns will be used. Range for the value: (0;180)
Default: 90.

AGL Tolerance - allows flying straight trajectories over the slightly waved landscape, by specifying how precisely the UAV should follow the required altitude above ground. To maintain a defined height, additional waypoints will be added if the height difference is larger than the AGL tolerance. The smaller the AGL tolerance value, the greater the number of waypoints that will be generated. If AGL tolerance is set to 0 (zero) UAV’s altitude will be constant throughout the route, but many additional waypoints will be added.

Direction angle - specifies the azimuth of forwarding passes. Calculates the optimal trajectory if left blank.

Overshoot - extends the forward pass for a specified number of meters. Overshoot gives a drone some space to make a turn and return to the scanning area as straight as possible.

Overshoot speed - drone velocity for overshoot segments.

Straight flight after turn - for LIDARs, it is crucial to have at least X meters of straight flight after each turn before entering the next segment. Default: 10 meters.

Area buffer - extends scanning in all directions by a specified number of meters.

Action execution:

• Every point – actions will be generated on all waypoints;
• At the start – the algorithm will generate actions only at the first waypoint.

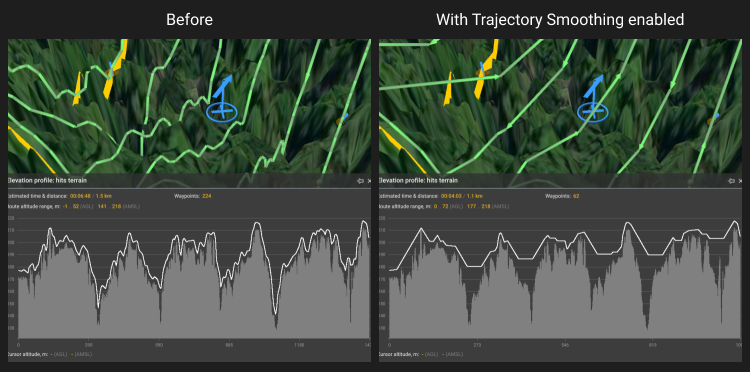

Trajectory Smoothing

Enables two options, "Max slope" and "Minimal gap", to make the trajectory smoother by limiting slope angles and ignoring gaps.

Double grid - a checkbox. If checked, then the trajectory is a double grid; otherwise, a single grid (snake).

Avoid obstacles – flag to be set if buildings have to be considered when planning the path. Do not uncheck without a specific need to do so.
