Missions and Routes

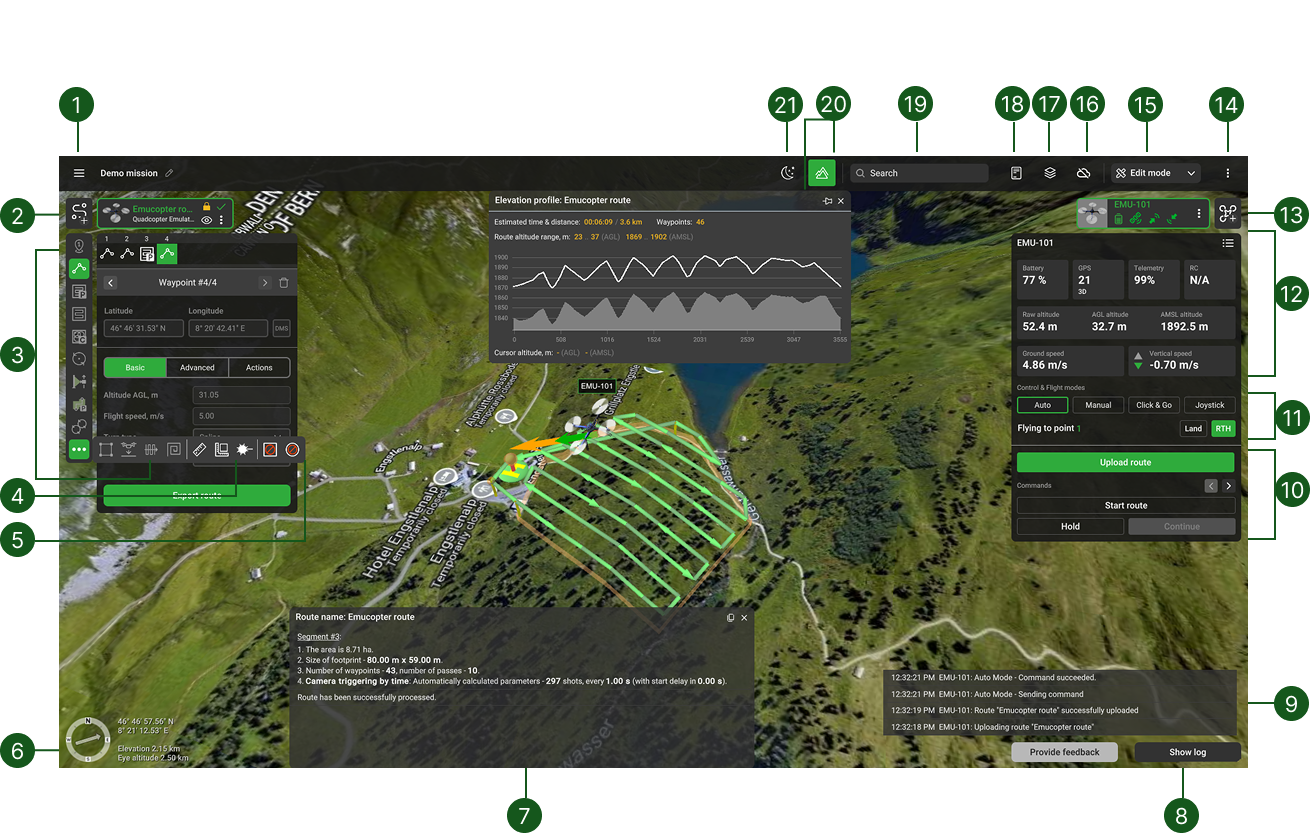

The mission and route editor is the first window displayed after the application starts.
Block number | Description |
---|---|
1 | MENU button to access Main Menu settings and Exits (Quits) software. Available functions for the Mission editor mode are to Create a new one, Open an existing one, Stop editing, Remove, Import, or Export a mission. |
2 | From left to right: Add a new route button, followed by the list of created Route cards. Each Route card indicates the Route's name, Assigned vehicle profile, Status of the route's calculation, the option to lock the route for editing (the route is automatically locked after uploading to the vehicle), the option to Hide/Show the route, and Parameters setting button (right bottom corner of the Route card - the gears symbol). Hovering the cursor over the Route card - displays the short route status. Click the calculation indicator of the Route to open/hide the Route’s log. Double-click the Route’s card will recenter point of view to the appropriate route on the map. Route calculation indicators: Green check - the route is calculated and is ready to upload to the vehicle; Yellow dot - the route is not calculated. If the calculation doesn’t start automatically, click the yellow dot to initiate the calculation; Red exclamation - route calculated with errors. |
3 | Route planning tools and associated tool’s settings window - select a tool, draw a route segment on the map, and then configure parameters in the route’s tool setting window. Note: available Route planning tools can differ, depending on vehicle type. To draw a route, double-click (or SHIFT+click) on the map. Hold Alt+left click and draw by moving the mouse on the map to draw a freehanded curve. |
4 | Measurement tools: Distance, Area, and Visibility measurement tools. |
5 | No-Fly-Zone drawing tools: Polygon and Conical drawing tools. |
6 | Compass, cursors coordinates on map and elevation indicator. To return the map to the North-up view, click the compass icon. |
7 | Route’s log - all route-related notifications are displayed here. To open the log, click on the route card’s calculation status indicator. |
8 | The show log button opens the full vehicle notification list. |
9 | Vehicle's log - recent vehicle-related notifications appear here but will disappear shortly. To open the full vehicle notification list, click the Show log button. |
10 | Vehicle’s command buttons - these commands are never blocked to provide the pilot with the ability to send any command to the vehicle at any time. Note: Vehicle command buttons can differ, depending on vehicle type. The button is dark grey - it is active and the command can be sent to the vehicle. If the button is light grey - based on telemetry data, it is not possible to send a command to the vehicle - the button is inactive. The button has a green border - according to telemetry data, the vehicle is in current mode. Some commands may require confirmation to activate them; therefore, an additional window will be displayed. |
11 | Vehicle’s Control & Flight modes buttons - switch between vehicle modes (Auto or Manual) and determine vehicle behavior (Arm. Disarm, RTH, Land). Note: Vehicle command buttons can differ, depending on vehicle type. The button is dark grey - it is active and the command can be sent to the vehicle. If the button is light grey - based on telemetry data, it is not possible to send a command to the vehicle - the button is inactive. The button has a green border - according to telemetry data, the vehicle is in current mode. Some commands may require confirmation to activate them; therefore, an additional window will be displayed. |
12 | Telemetry window for the selected vehicle. (In the case of RTK usage, the RTK sign will appear.) |
13 | From right to left: Add vehicle button (+) adds a vehicle to the mission from a list. Usually, all vehicles connected via data link to the computer, are automatically added to the list. Vehicle cards are displayed to the left of the Add vehicle button, indicating the vehicle name, Battery status, Uplink level, Downlink level, GPS status (satellites count), and settings button (right bottom corner on Vehicle icon). Hovering cursor over Vehicle card - basic information about the vehicle is being displayed (name, profile, serial number, connection port). Double-click on the Vehicle card will recenter point of view to the appropriate vehicle position on the map. Clicking the vehicle icon three dots will result in the Vehicle Card showing up. Select profile - Select the current vehicle Focus on home location - Show the home location of the selected vehicle Gain control - Gain manual control of the selected vehicle Release control - Release manual control of the selected vehicle. Show avatar - Show the avatar for the selected vehicle. Show telemetry - Show the telemetry window for the selected vehicle. Show commands - Show the command panel for the selected vehicle. Show camera footprint - Show camera capture real-time footprint. ADS-B transponder - Show information from the ADS-B transponder. Requires drone-installed ADS-B transponder and ADS-B receiver connected to laptop with UgCS. Remove - Remove the selected vehicle from the main screen. |
14 | Map option menu (three dots) which provides several settings: automatic vehicle size, show name, show arrows, show route summary, show all waypoints and viewpoints. |
15 | Edit mode/Telemetry – shows telemetry or command window. |
16 | Map layers menu (globe symbol) - Layers: select map and overlay providers, and elevation sources; add buildings, import placemarks, and offline caching. |
17 | License status indicator - displays the license activation status of UgCS: green - the license is activated, yellow - not activated. |
18 | Location search field - enter address or latitude and longitude coordinates to navigate to the desired location. This function depends on an internet connection! |
19 | Elevation’s profile button - displaying the AMSL or AGL elevation of the vehicle for the planned route. Also, displaying the estimated distance of the route, the estimated duration of the flight, the total count of waypoints, and minimal and maximal altitude AMSL/AGL. |
20 | Daylight theme - switch between the dark and light themes of UI |
